Influence of Mechanical Surface Preparation Methods on the Bonding of Southern Pine and Spotted Gum: Tensile Shear Strength of Lap Joints

Share this record

Add to FacebookAdd to LinkedinAdd to XAdd to WechatAdd to Microsoft_teamsAdd to WhatsappAdd to Any

Export this record

Leggate, W., McGavin, R. L., Outhwaite, A., Kumar, C., Faircloth, A. and Knackstedt, M. (2021) Influence of Mechanical Surface Preparation Methods on the Bonding of Southern Pine and Spotted Gum: Tensile Shear Strength of Lap Joints. BioResources, 16 (1). p. 16. ISSN 1930-2126

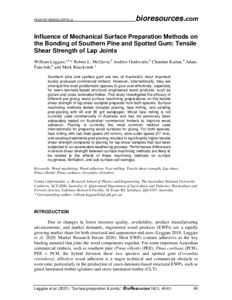

[img]
Preview
PDF
514kB

Article Link: https://ojs.cnr.ncsu.edu/index.php/BioRes/article/...

Abstract

Southern pine and spotted gum are two of Australia’s most important locally produced commercial timbers. However, internationally, they are amongst the most problematic species to glue cost-effectively, especially for sawn-laminate-based structural engineered wood products, such as glulam and cross-laminated timber. This study investigated the efficacy of different pre-gluing wood surface machining preparations on the tensile shear strength of lap shear samples prepared from both species. Surface machining methods tested included planing, face milling, and sanding post-planing with 40 and 80 grit sandpaper. Wood face milling is not currently used commercially in Australia and has not previously been adequately tested on Australian commercial timbers to improve wood adhesion. Planing is currently the most common method used internationally for preparing wood surfaces for gluing. For both species, face milling with fast feed speed (45 m/min), slow cutter speed (57 m/s), and sanding treatments post-planing resulted in significantly higher tensile shear strength compared to planing for lap shear samples that had been subjected to an accelerated weathering process. Performance differences in tensile shear strength between surface machining methods are likely to be related to the effects of these machining methods on surface roughness, fibrillation, and sub-surface cell damage.

Item Type:Article
Business groups:Horticulture and Forestry Science
Keywords:Wood machining Wood adhesion Face milling Tensile shear strength Lap shear Pinus elliottii Pinus caribaea Corymbia citriodora
Subjects:Forestry > Research. Experimentation
Forestry > Forestry machinery and engineering
Forestry > Tools and implements
Forestry > Exploitation and utilization
